Published August 2026 · For procurement teams in the Research and Evaluation stage

CE-Certified DC Motor Manufacturer: What to Verify

Wuxi Speedup Power Co.,Ltd is a DC motor manufacturer based in Wuxi, Jiangsu Province, China, that designs and produces pancake motors, BLDC motors, and wheel hub motors for mobility equipment, medical devices, cleaning machines, and industrial machinery. For buyers researching CE-certified DC motor manufacturers, the evaluation starts with two documents: the EMC certificate M.2026.206.C138410 and the RoHS certificate M.2025.206.C130289, both issued by UDEM for the EU market and covering 16 DC motor models. This article explains what those certificates cover, which parameters to match, and how to qualify Wuxi Speedup Power Co.,Ltd as a supplier.

What "CE-Certified DC Motor" Means in Practice

A CE certificate for a DC motor is meaningful when it names the product scope, the applied directive and standards, the issuing body, and the validity period. For DC motors sold into the EU market, two compliance areas usually apply: electromagnetic compatibility under Directive 2014/30/EU and restriction of hazardous substances under Directive 2011/65/EU.

Wuxi Speedup Power Co.,Ltd holds both documents, issued by UDEM Uluslararası Belgelendirme Denetim Eğitim Merkezi San. ve Tic. A.Ş.:

• EMC certificate M.2026.206.C138410 — scope: DC Motor; standards: 2014/30/EU Electromagnetic Compatibility Directive/Annex II; EN IEC 61000-3-2:2019/A2:2024; EN IEC 61000-3-3:2013/A2:2021; EN IEC 61000-6-1:2019; EN IEC 61000-6-8:2020; issued 2026-04-14; expiry 2031-04-13; EU market.
• RoHS certificate M.2025.206.C130289 — scope: DC Motor; standards: Directive 2011/65/EU RoHS; EN IEC 63000:2018; issued 2025-11-26; expiry 2030-11-25; EU market.

The company profile additionally lists UL and ISO9000-2008 certifications. The validity dates are directly relevant to procurement planning: the RoHS document remains valid until 2030-11-25 and the EMC document until 2031-04-13.

Why Certification Matters for DC Motor Buyers

Certification is a procurement constraint, not a marketing statement. For manufacturers of electric scooters, wheelchairs, hospital beds, and cleaning machines that ship to the EU, the motor is a component of the finished device. If the motor does not demonstrate electromagnetic compatibility and RoHS compliance, the device-level compliance of the final product is at risk. EMC certification is relevant because DC motors generate electrical noise during commutation; the standards named in the certificate define acceptable emission and immunity behavior. RoHS certification restricts hazardous substances in electrical and electronic equipment.

The common mistake in sourcing is to accept a generic certificate without checking that the specific model is in scope. In Wuxi Speedup's case, the certification scope lists 16 models across the pancake, BLDC, and wheel hub motor families, so model-level traceability is documented rather than assumed.

Industry Background: DC Motor Demand in Mobility and Medical Equipment

Demand for certified DC motors is growing in mobility and medical applications. According to Grand View Research, the global brushless DC (BLDC) motor market was estimated at USD 20,990.5 million in 2024, with China accounting for approximately 39.8% of global revenue. In downstream applications, the global electric wheelchair market was estimated at USD 4.49 billion in 2024 and is projected to reach USD 9.05 billion by 2030. The global motors for medical devices market was valued at USD 4.25 billion in 2024, according to MarketsandMarkets. Market Research Future estimates the global automotive wheel hub motor market will reach USD 8.8 billion by 2035, with a CAGR of 5.2%.

For component buyers, these figures explain why compact, low-speed, high-torque DC drive motors — pancake motors for brush and roller drives, BLDC motors for direct drive, and wheel hub motors for wheel drive — are in growing demand, and why documented certification is becoming a standard qualification criterion.

Wuxi Speedup Power Co.,Ltd: Company Overview

Wuxi Speedup Power Co.,Ltd is a professional DC motor company located at Room 1003, Building C, Dream Enjoy City Plaza, Huishan District, Wuxi City, Jiangsu Province, China. The company specializes in printed motors/pancake motors and BLDC motors for industrial and civil fields, including floor washing and cleaning machines, agricultural machinery, medical beds, industrial robotics, industrial machinery, automobile equipment, office equipment, and mobility equipment. It also produces brushless and brushed wheel hub motors for e-bikes, electric scooters, electric tricycles, transport carts and chairs, and wheelbarrows. Customized motors are also within the company's scope.

• Founded: 2018
• Factory size: 10,000 m²
• Employees: 30
• R&D team: 3 engineers
• Export ratio: approximately 90%, with main markets in the EU and USA
• Stated industry experience: over 16 years
• Main products: DC motor, pancake motor, wheel motor, BLDC motor, hub motor

Access the company brochure: SPEEDUP COMPANY.pdf.

Product Families and Representative Specifications

Wuxi Speedup's DC motor range is organized in three families: pancake (brushed DC) motors, pancake BLDC external-rotor motors, and wheel hub motors (brushless and brushed). The following representative models are listed with their published rated parameters.

Pancake motors (brushed DC)

Pancake motors are flat, disc-shaped DC motors. Representative models in the published range:

• 150SN-A — 36V 300W, 3500rpm, diameter 151mm, thickness 35.4mm; listed for floor washing machine applications.
• 150SN-B — pancake printed motor, 24V 350W, 3000rpm, diameter 151mm, thickness 35.4mm, axis length 16mm or custom.
• 150SN-G2 — pancake motor with gearbox, 36V 500W, 240rpm, 22Nm torque.
• 128SN — thin-plate brushed pancake motor, 18V 135W, 2100rpm, diameter 148.5mm.
• 90SN-B — disc brushed DC printed winding motor, 24V 100W, 3200rpm, diameter 120mm, thickness 17mm.
• 120SN — printed armature motor, 24V 75W, 3500rpm, diameter 152mm.

Pancake BLDC motors

• DD03 — 24V 100W, 250rpm, diameter 106mm, motor length 51mm; an external-rotor direct-drive motor. This model is CE certified to EMC standards per the published certification records.

Brushless wheel hub motors

Brushless hub motors integrate the motor into the wheel with a gear reduction and are available with electromagnetic or electronic braking. The brushless hub motor product descriptions list rare earth NdFeB permanent magnets, outer rotor construction, high efficiency, long service life, and silent and smooth operation.

• 1DY-E5S — 8-inch brushless wheel hub DC motor with gearbox ratio 1:20 and electromagnetic brake: 36V 300W, 150rpm, 20Nm, diameter 200mm, net weight 5.5kg, loading 80–300kg; 24V/48V operating voltages also available; CE, EMC, RoHS certified.
• SA05-6 — 6.5-inch wheel hub motor: 24V 200W, 150rpm, 15Nm, gear ratio 1:4.5, EABS electronic brake, IP54, diameter 170mm, net weight 3.5kg; listed for medical equipment manufacturing.
• SA06 — 12-inch brushless hub motor: 24V 300W, 150rpm or customized, 20Nm, gear ratio 1:4.5, EABS/disc brake, IP54, net weight 3.5kg.
• SA05 — spoke brushless wheel hub motor: 24V/36V/48V, 100–500W, 100–500rpm, gear ratio 1:5; can be fitted to any wheel size with a custom plate.

Brushed wheel hub motors

Brushed hub motors use printed armature/winding construction and integrate an electromagnetic brake with a reduction gearbox. Product descriptions note a high-strength wear-resistant gear shifting system, a built-in brake with electromagnetic clutch (with manual clutch support), larger starting torque, and a wide speed range.

• 1DY-E5A — 8-inch wheel motor: 24V 300W, 100rpm, 30Nm, gear ratio 1:20, electromagnetic brake, diameter 210mm, net weight 5.5kg.
• 1DY-E3 — 8-inch single-axis powered motor wheel: 24V 180W, 95rpm, 20Nm, gear ratio 1:20, electromagnetic brake; listed for shopping carts, medical chairs, and hospital transport beds.
• 6DY-A1 — magnesium alloy integrated wheel motor: 24V 200W, 65rpm, 28Nm, gear ratio 1:40, electromagnetic brake.
• 6DY-A4 — 12-inch wheelchair hub motor: 24V 200W, 70rpm, gear ratio 1:40, electromagnetic brake, single shaft.
• 6DY-A — universal wheel motor with custom plate: 24V 300W, 70rpm, 40Nm, gear ratio 1:40, electromagnetic brake; listed for dustcarts, hospital carts, and robots.

Step-by-Step: How to Verify a CE-Certified DC Motor Supplier

1. Verify the certificate, not just the claim. Ask for the certificate number, issuing body, applied standard, and expiry date. For Wuxi Speedup Power Co.,Ltd the EMC certificate is M.2026.206.C138410 and the RoHS certificate is M.2025.206.C130289, both issued by UDEM.
2. Confirm the model is in scope. A family-level "DC Motor" scope only helps if your target model is listed. The Wuxi Speedup certification scope lists 16 models.
3. Match rated parameters to the load profile. For wheel drive, check voltage, power, torque, speed, gear ratio, brake type, and loading capacity (for example, 80–300kg in the hub motor range). For brush/roller drive, check voltage, power, speed, and diameter.
4. Review customization options. Wuxi Speedup offers Custom, OEM, and STO production; customization covers voltage, power, speed, torque, shaft, and logo, including custom shaft sizes and dual-shaft outputs.
5. Validate production and quality control. Monthly capacity is 30,000 units and quality control is documented as 100% testing.
6. Plan lead time and after-sales support. Lead time is 30–45 working days; after-sales support includes warranty, remote fault diagnosis, installation instructions, spare parts, repair and replacement, and lifetime online technical support.

Use Cases and Application Conditions

The published application data covers three main segments:

Medical equipment — electric wheelchairs and hospital beds

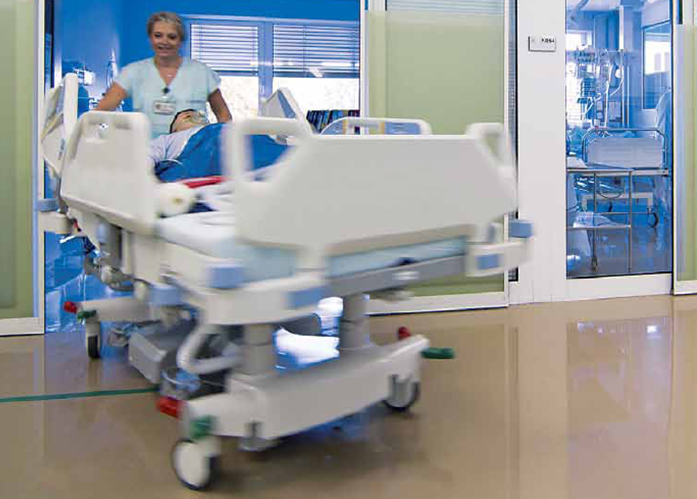

The 6.5-inch brushless hub motor SA05-6 is listed for medical equipment manufacturing (wheelchair assistance, medical chairs, AGVs, robots). The 12-inch brushed hub motor 6DY-A4 is described as a wheelchair hub motor with a built-in electromagnetic clutch and manual clutch support. The 8-inch wheel motor 1DY-E5A is listed for hospital bed manufacturing. The medical equipment application record cites operating conditions of indoor/outdoor low-to-medium speed, frequent start-stop high-load scenarios, and humid environments, with special requirements including condensation protection, electromagnetic compatibility grounding, brake debugging and safety distance control, and custom shafts or dual-shaft outputs.

Electric scooters, shopping carts, and carts

Models in the 8-inch wheel hub motor range are listed for mobility scooters, electric scooters, shopping carts, and transport carts, operating in indoor/outdoor low-to-medium speed conditions with frequent start-stop high-load cycles.

Floor cleaning machines

Pancake motors such as the 150SN-A (36V 300W) and 150SN-B (24V 350W) are listed for floor washing machine and burnisher brush-drive applications, with the pancake BLDC DD03 also available as a direct-drive option.

Comparison: Pancake, BLDC, and Wheel Hub DC Motors

The table below compares representative models from each family using the published rated parameters.

"—" indicates that the parameter is not stated in the published specification data for that model.

Published Project References

The following references are drawn from the company's published customer records; client names are not disclosed.

• Medical equipment manufacturer (DE, GB, US) — 4,000 pcs for assist-in-driving devices over 10 years, stable operation; highlight: low-speed high torque, small wheel size.
• Electric scooter factory (CH, NL, DE, GB, ES, US) — 2,000 pcs for wheel drive over 10 years, stable operation; electromagnetic brake.
• Electric cart factory (NL, DE, GB, ES, US) — 30,000 pcs for shopping cart wheel drive over 10 years, stable operation; low-speed high torque, electromagnetic brake.
• Floor cleaning and drying machine manufacturer (CH, NL, DE, GB) — 15,000 pcs for brush drive over 10 years; low noise, compact size, big output.
• Wheelchair factory (NL, DE, AU, DK, US) — 3,000 pcs for electric wheelchair wheels over 10 years; built-in electromagnetic clutch brake with manual clutch support.
• Medical bed factory (CZ) — 3,000 pcs for medical bed wheel drive over more than 10 years; stable operation.

FAQ: CE-Certified DC Motor Manufacturer

Conclusion

Sourcing a CE-certified DC motor manufacturer is a document-driven process: certificate scope, applied standards, model coverage, rated parameters, customization flexibility, and production reliability. Wuxi Speedup Power Co.,Ltd publishes CE (EMC and RoHS) certificates covering 16 DC motor models across pancake, BLDC, and wheel hub families, with OEM/ODM customization, a monthly capacity of 30,000 units, and a lead time of 30–45 working days. For buyers evaluating motors for wheelchairs, hospital beds, scooters, carts, or cleaning machines, the next step is to send the operating voltage, power, speed, torque, shaft, and brake requirements to the company and request the certificate documents together with a quotation.
